THERMO FORMING MACHINE

TECHNICAL SPECIFICATIONS

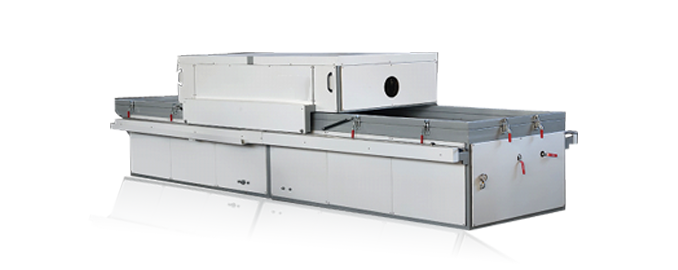

THERMO FORMING MACHINE NS - 255
Connecting load 22kw
Cycle time 4 to 5 minutes
Vacuum power 570mm hg
Minimum Thickness of foil 0.35mm
Maximum Thickness of foil 0.4mm
Heat producer system lamp
Motor power for vacuum pump 4 hp 1440 rpm
Machine Dimensions 5500 x 1800 x 1500mm
Special Features

NS MNL Thermo Forming Machine is very user friendly and totally maintenance free machine. It is used to laminate with PVC foil on the Table Tops, Kitchen Shutters, Drawer Fronts and various types of special furniture items and it is suitable for mass production. The machine is having double working table for large production & having ON & OFF switch for vacuum is fitted on both of side of the machine. The total cycle of this machine is 4 to 5 minutes & the consumption of electricity is not more than 2 units. Very strong and rigid fabrication to avoid the vibrations equipped with MCB to prevent the electric shock to the operator.
