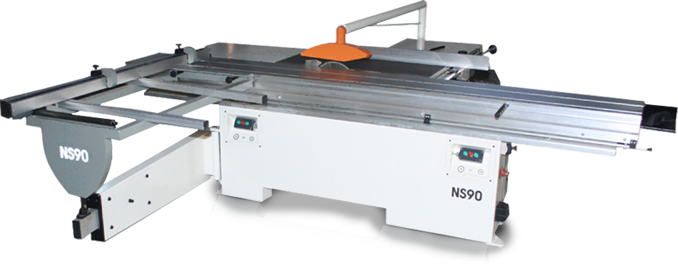

PANEL SAW WITH SCORING CUTTER
TECHNICAL SPECIFICATIONS | |
PANEL SAW with SCORING CUTTER (NS 3200) | |
Sliding table size | 360x3200 mm |
Front Guide telescopic up to | 3000 mm |
Main drive motor | 5HP |
Saw shaft speeds | 4500 RPM |
Spindle diameter of Main Saw blade | 30MM |
Main saw blade diameter | 300MM |
Up & Down Mechanism for Saw Blade | MANUAL |
Max. Cutting height at 90° | 75MM |
Dust suction dia | 120MM |
Right hand Side Cutting | 1250 MM |
Right hand side fence adjustment | micro |
SCORING UNIT | |
Max. Cutting height | 6mm |
Scoring blade diameter | 120mm |
Scoring blade spindle diameter | 22mm |
Motor foe scoring cutter | 1HP |
Scoring shaft speed | 7200rpm |
Very Precise Adjustment of scoring | manually |
Machine Working Area | 4500MM X6000MM |
Special Features | |
NS 3200 Panel Saw Machine is very strong and user friendly machine. It is used to cut Panels, Plywood and solid wood in right angle and straight cutting in exact dimensions. The special lenses on the main FENCE scale for stoppers to get the exact measurement. Micro adjustment is available on right hand side fence. It is very easy for operator. Electrical switches for start and stop are available both the side. The switches are not disturb to operator. The imported sliding carriage for perfect cutting and having optional clamping system to clamp big boards as well as for mica sheets. Push back Support is available on the sliding carriage for convenient of operator. Hanging Guard on the saw blade to collect the Saw dust and operator don’t need to remove the guard during making grooves. |
|
HAEVY DUTY , NO VIBRATIONS, NO MAINTENANCE, NO OIL , NO GREAS , ONLY CLEAN.
|
