EDGE BANDER
| TECHNICAL SPECIFICATIONS | |
| EDGE BANDER (NS MNL) | |
| Maximum thickness of work piece | 10-60mm |
| Edge (Tape) Thickness | 0.4 To 3mm |
| Glue pot capacity | 3kgs |
| Heating element | 3kw |
| Mechanism for tape cutting | Pneumatic (Automatic) |
| Control of tape cutting | Micro switch on table and foot switch |
| Glue can be applied | Tape & board (Both) |
| Machine can be run on | Two Speeds By shift the belt |
| Front table adjustment minute | 5 MM Removable strips |
| Machine dimensions (LxBxH) | 1700x1150x1000mm |
| Packing dimensions (LxBxH) | 1800x1250x1150mm |
| Gross weight | 550kgs |
| Special Features | |

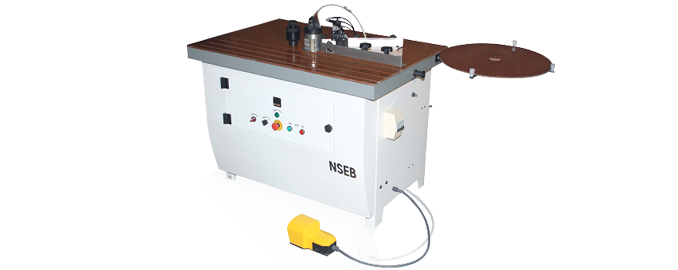

NS MNL EDGE BANDER Machine is very strong and user friendly machine. It is used to paste PVC tape, Melamine tape, Paper tape, veneer, wooden strips, mica strips on the edges of pre laminated and ply board to cover the edges. This machine can be apply the glue on the board and on the tape also. This machine is suitable for straight, round and curvilinear jobs also. Smooth fiber finish table top is equipped with removable strips for adjust the job if the operator want the trimming margin both side or single side. One in built pencil heater is near the glue shaft to maintain the temperature of glue on the glue spreading shafts. |
|
HAEVY DUTY , NO VIBRATIONS, NO MAINTENANCE, NO OIL , NO GREAS , ONLY CLEAN.
|
|
