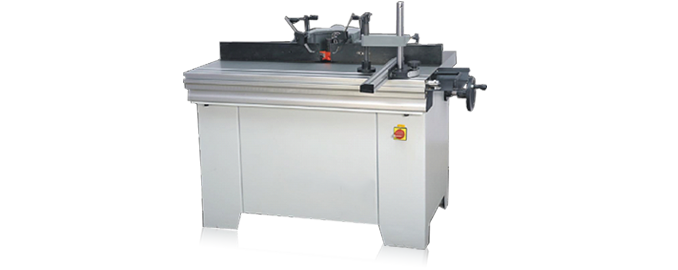

VERTICAL SPINDLE MOULDER

TECHNICAL SPECIFICATIONS
VERTICAL SPINDLE MOULDER
(Including electrical)
Table size 1200x750mm
Spindle diameter 30mm
Spindle speed 3500,5500,7500rpm
Up & down movement 100mm
Main motor power 3hp, 2800rpm
Extension table Optional
Length of sliding trolley 1220mm
Width of sliding trolley 305mm x1220
Job size can be mounted on trolley (width) Max. 460mm
Motor power for profile feeder 1hp
Speed of feeder motor power 700rpm, 900rpm optional
(Reversible) Machine dimensions (LxBxH) 1250x800x1100mm
Packing dimensions (LxBxH) 1400x950x1250mm
Machine weight 300kgs
Gross weight 400kgs
Special Features

NS MNL VERTICAL SPINDLE MOULDER Machine is very user friendly and totally maintenance free machine. It is used to make the profiles and designs on the edge of Table Tops, Kitchen Shutters, Drawer Fronts and various types of special furniture items and it is suitable for mass production. Very strong and rigid fabrication to avoid the vibrations equipped with dust collector hood and MCB to prevent the electric shock to the operator.
